What Is the Working Principle of a PSA Nitrogen Generator?

Whether you work with electronics, food packaging, metal production, or chemicals, nitrogen gas can be used to your advantage in countless ways. There are two primary ways you can have your nitrogen delivered, as either gas in cylinders or liquid form in tanks, though more and more companies are now investing in PSA Nitrogen generator . These offer on-demand delivery of a high-quality supply that eliminates the hassle and expense of scheduled deliveries and ensures a consistent supply. Learn about the functioning of a PSA nitrogen generator to better understand how they can benefit your business, making your choice of the appropriate equipment much simpler.

Basic Internal Structure Composition of PSA Nitrogen Generator

A PSA nitrogen generator is made up of several main parts that work together to produce a stable supply of nitrogen. Each part has its own job, and knowing how they connect can help users operate the system more effectively and spot potential problems during daily use.

The process starts with an air compressor. It draws in air from the surrounding environment and compresses it to the pressure needed for nitrogen production. Since compressed air often contains moisture, dust, and small amounts of oil, it passes through an air treatment system before entering the generator. This system usually includes filters, a refrigerated or desiccant air dryer, and a water separator. Clean, dry air helps protect the equipment and keeps nitrogen purity at the desired level.

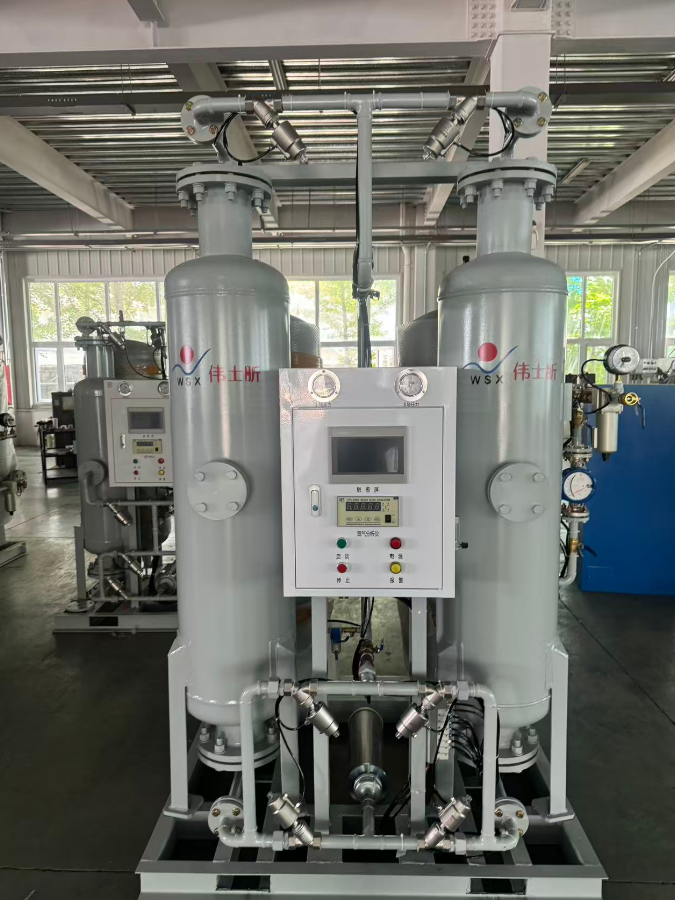

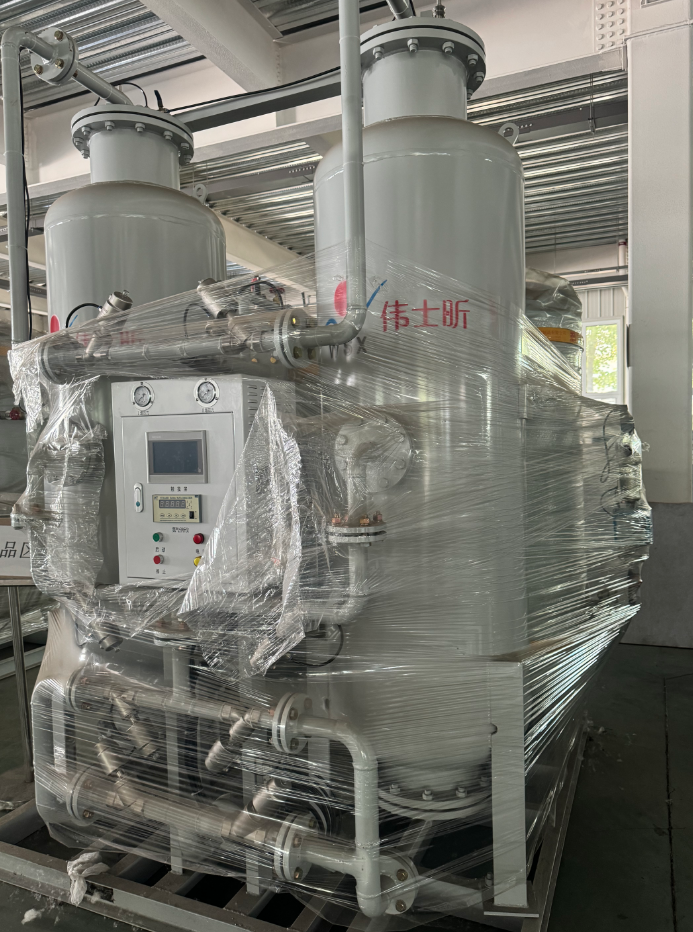

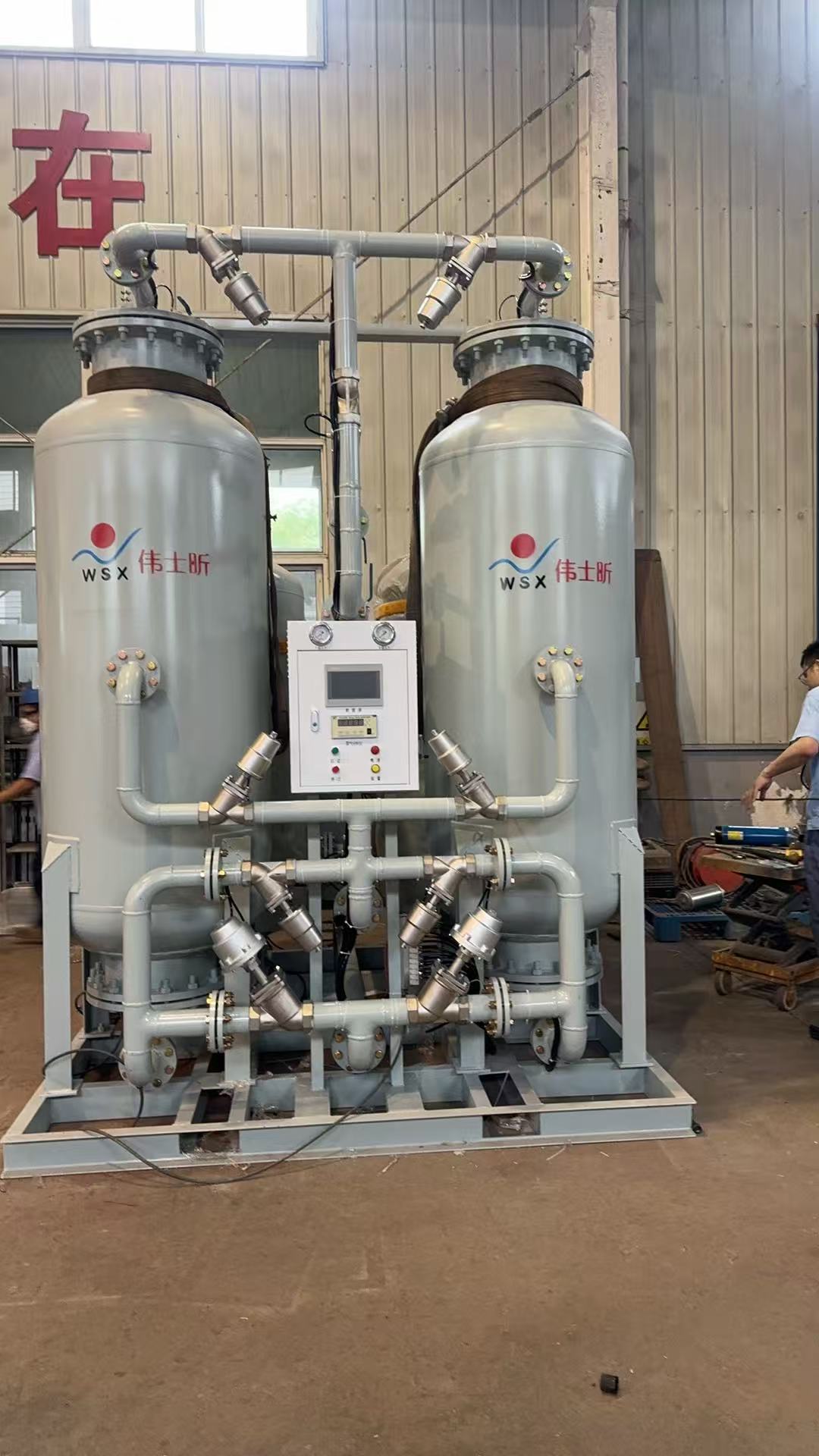

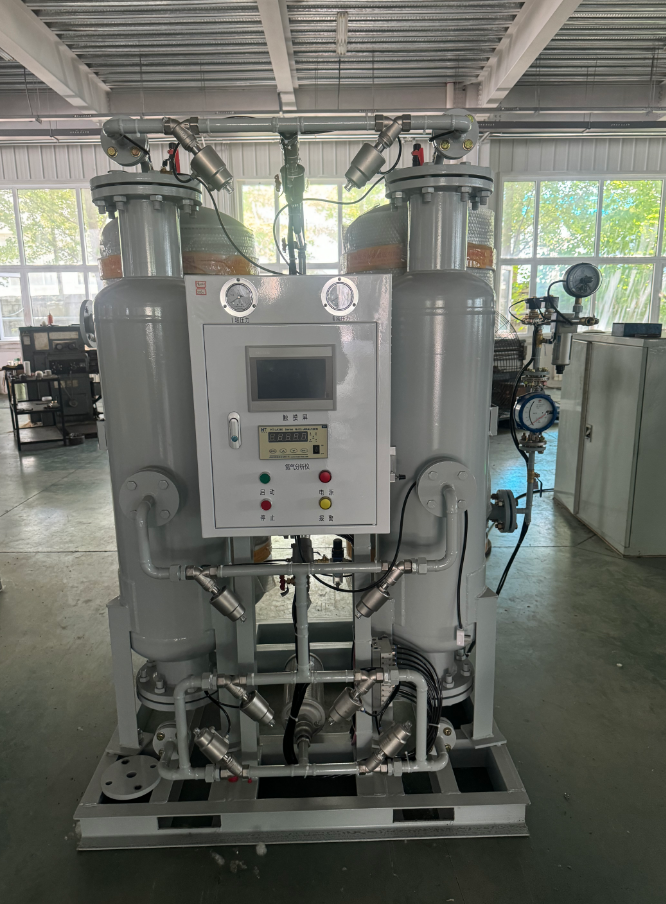

The heart of the PSA nitrogen generator is the adsorption tower. Most systems have two towers filled with carbon molecular sieve (CMS). This special material separates oxygen from nitrogen by trapping oxygen molecules while allowing nitrogen to pass through. The two towers work in turns, making sure nitrogen production continues without interruption.

Several control valves direct the airflow between the two towers. These valves open and close automatically according to the operating cycle. A PLC controller manages the timing of each step, making the switching process smooth and reliable. Operators only need to monitor the system instead of controlling every action by hand.

After the nitrogen leaves the adsorption towers, it enters a storage tank. The tank helps keep the gas pressure stable, especially when demand changes during production. Many systems also include a nitrogen purity analyzer, pressure gauges, flow meters, and alarm devices. These instruments allow operators to check gas quality and system performance at any time.

Think of the whole generator as a well-organized team. The compressor supplies the air, the filters clean it, the adsorption towers separate the gases, and the control system keeps everything running in the right order. When every part works together, the generator can provide a steady supply of high-purity nitrogen for many industrial applications.

How Carbon Molecular Sieve Realizes Nitrogen-Oxygen Separation

The key to a PSA nitrogen generator is the carbon molecular sieve, often called CMS. This special material is responsible for separating nitrogen from the other gases found in compressed air. Although the process sounds complex, the basic idea is easy to understand.

Air is made up of about 78% nitrogen, 21% oxygen, and small amounts of other gases. When clean, compressed air enters the adsorption tower, it flows through a bed of carbon molecular sieve. The tiny pores inside the CMS are carefully designed to separate gases based on how quickly their molecules move.

Oxygen molecules move into these pores faster than nitrogen molecules. As a result, the carbon molecular sieve temporarily captures most of the oxygen while allowing nitrogen to continue through the tower. This nitrogen is then collected and delivered for use. The separation happens in just a few seconds, making the process both fast and efficient.

The carbon molecular sieve does not hold oxygen forever. After a short period, the adsorption tower becomes saturated and needs to release the trapped oxygen. The system lowers the pressure inside the tower, allowing the oxygen to escape. This step is called regeneration. Once the trapped gases are released, the CMS is ready to begin another separation cycle.

To keep nitrogen flowing without interruption, PSA generators use two adsorption towers. While one tower is producing nitrogen, the other is regenerating. The towers automatically switch roles after a set amount of time. This alternating cycle allows the generator to provide a continuous supply of nitrogen throughout the day.

A simple way to picture the process is to think of the carbon molecular sieve as a gatekeeper. It briefly holds back oxygen while letting nitrogen pass through. Once the gatekeeper has done its job, it clears itself and prepares for the next group of air molecules. This repeating cycle is what makes PSA nitrogen generation reliable, energy-efficient, and suitable for industries that need a steady source of high-purity nitrogen.

Key Operating Parameters Affecting Nitrogen Purity Output

The performance of a PSA nitrogen generator depends on more than just its design. Several operating parameters directly affect how much Nitrogen machine the system can produce and how pure that nitrogen will be. Understanding these factors helps operators keep the generator running efficiently and avoid unexpected drops in performance.

One of the most important factors is compressed air pressure. The generator is designed to work within a specific pressure range. If the pressure is too low, the carbon molecular sieve cannot separate oxygen effectively, which may reduce nitrogen purity. If the pressure is too high, the system may consume more energy than necessary and place extra stress on the equipment.

The quality of the compressed air also plays a major role. Moisture, oil, and dust can damage the carbon molecular sieve over time. Even a small amount of contamination can lower the separation efficiency and shorten the service life of the adsorption material. Regular filter replacement and proper air dryer maintenance help prevent these problems.

Nitrogen flow rate is another key setting. A higher flow rate means more nitrogen is produced in less time, but the gas may not reach the highest purity level because the air spends less time inside the adsorption tower. Reducing the flow rate gives the carbon molecular sieve more time to separate oxygen, allowing the generator to produce higher-purity nitrogen. This is why flow rate and purity often need to be balanced based on the application's needs.

The switching time between the two adsorption towers also affects performance. The control system is programmed to change towers at the right moment. If the cycle is too short or too long, separation efficiency can decrease. Regular inspection of valves, sensors, and the control system helps maintain stable operation.

In everyday operation, the best results come from monitoring these parameters instead of changing them frequently. Checking pressure, air quality, flow rate, and nitrogen purity on a regular basis allows small issues to be corrected before they become larger problems. With proper operating conditions, a PSA nitrogen generator can deliver reliable, high-purity nitrogen for many years.

Main Application Industries of PSA Nitrogen Generators

PSA nitrogen generators are used in many industries because they provide a steady supply of nitrogen without relying on frequent gas deliveries. Since the system produces nitrogen on-site, businesses can match production with daily demand while reducing storage and transportation concerns. The right nitrogen purity and flow rate depend on the application, but the basic working process remains the same.

Food and beverage manufacturing is one of the most common uses. Nitrogen is often used to replace oxygen inside food packages, helping slow oxidation and keep products fresh for a longer time. Snack foods, coffee, dairy products, and packaged meat are just a few examples where nitrogen plays an important role in protecting product quality.

In the electronics industry, nitrogen helps create a stable environment during soldering and assembly. By reducing the amount of oxygen around the solder joints, manufacturers can lower oxidation and improve the quality of electronic components. This is especially useful when producing printed circuit boards and other precision products.

Metal processing also relies on nitrogen. During laser cutting, nitrogen is used as an assist gas to produce clean cutting edges and reduce oxidation on stainless steel and aluminum. Heat treatment and metal fabrication plants also use nitrogen to protect metal surfaces during high-temperature processes.

Chemical and pharmaceutical manufacturers often use nitrogen as a protective gas. It helps prevent unwanted reactions with oxygen and moisture when handling sensitive chemicals, powders, or liquid products. This improves product stability and supports safer production.

The oil and gas industry uses nitrogen for pipeline purging, pressure testing, and tank blanketing. These applications help improve safety by reducing the risk of combustion when working with flammable materials.

Other industries, including plastics, rubber, tire manufacturing, and 3D printing, also benefit from on-site nitrogen generation. Even small and medium-sized factories are choosing PSA nitrogen generators because they provide a reliable gas supply that can grow with production needs. By understanding how different industries use nitrogen, businesses can choose the right generator size and purity level for their own operations while avoiding unnecessary operating costs.

Core Advantages of On-site PSA Nitrogen Making Equipment

Producing nitrogen on-site with a PSA nitrogen generator offers several practical benefits for manufacturers. Instead of waiting for gas deliveries or managing large storage tanks, businesses can generate nitrogen whenever production requires it. This gives greater control over supply while helping daily operations run more smoothly.

One of the biggest advantages is a continuous source of nitrogen. As long as the generator has compressed air and power, it can keep producing nitrogen throughout the workday. This reduces the risk of production delays caused by empty cylinders or late deliveries. For factories that operate around the clock, having a reliable gas supply is especially valuable.

On-site generation can also lower long-term operating costs. Although purchasing a PSA Membrane nitrogen generator requires an initial investment, many companies recover that cost over time by reducing spending on bottled or liquid nitrogen. They also save money on transportation, cylinder rental, and handling charges, which can add up over the years.

Safety is another important benefit. Storing large numbers of high-pressure gas cylinders requires careful handling and extra storage space. With an on-site generator, fewer cylinders are needed, reducing the amount of manual lifting and the risks associated with transporting compressed gas around the workplace. A cleaner and more organized work area is an added benefit for many facilities.

PSA nitrogen generators are also designed to be easy to operate. Modern systems use automatic controls to manage the adsorption cycle, monitor pressure, and maintain nitrogen purity. Operators mainly need to perform routine inspections, replace filters on schedule, and keep the compressed air system in good condition. This makes daily operation straightforward even for facilities with limited technical staff.

Another advantage is flexibility. The generator can be selected according to the required nitrogen flow rate and purity, making it suitable for both small workshops and large manufacturing plants. If production increases in the future, many systems can be expanded or upgraded to meet higher demand.

For businesses that use nitrogen every day, on-site PSA generation provides a dependable, cost-effective, and convenient solution. It combines stable performance with lower operating costs and greater independence, making it a practical choice for a wide range of industrial applications.
