A Complete Guide to the Working Principle of PSA Nitrogen Generators

A PSA nitrogen generator is typically the solution to the regular supply of nitrogen without the need to purchase cylinders on a frequent basis. Separates nitrogen and oxygen on site, using normal air, to meet the needs of businesses for a secure supply of gas if necessary. This is frequently applied in food packaging factories, laser cutting factories, and even the electronics factories. The companies can choose to produce the nitrogen on demand and not have to wait for its delivery. It is easy but the logic behind it is a bit clever and it can be useful to examine it step-by-step.

Basic Logic of Air Separation for Nitrogen Production

The key idea behind a PSA nitrogen generator is to be able to separate nitrogen (N2) from the other gases in the air, mostly oxygen. It starts with regular air from the atmosphere. The air is compressed, or stuffed into a smaller area where the gases are more easily controlled and can be moved in the system.The air is compressed and passes through a unique carbon molecular sieve to compress it. The pores of this material are very small and are highly selective. The oxygen molecules are a little smaller than N₂ molecules and move in a slightly different way, so it can be trapped more easily in the sieve. The nitrogen molecules, however pass through and move on.Usually two of these tanks will be in operation. The other tank will be cleaned and reset and the oxygen tank will be collected. The “pressure swing” portion of the process is a back and forth switching between the two. One side is under high pressure to separate the gases and then the pressure is reduced, so that the oxygen can be removed from the trap. The process is then repeated.With this switching, nitrogen is kept flowing constantly. This is a reason that industries can make sure it will be used continuously. Nitrogen is used in the food packaging line to remove oxygen from the inside of the sealed packages to increase the shelf life of snacks and other food products. For laser cutting workshops, nitrogen is used to give protection from burning or oxidizing metal to make the cuts cleaner.The secret of viability is that no complicated reactions are involved and that there are no chemicals used. Requires only the use of air, pressure changes and adsorption material. The system is configured and its operation is maintained as necessary with a management of air movement.In simple terms, the PSA nitrogen generator is a smart filter that is able to “hold back” oxygen and allow nitrogen to pass through.

How Carbon Molecular Sieves Separate Oxygen and Nitrogen

In the PSA nitrogen system, the “work” is being done in a material known as carbon molecular sieve, or just CMS. It resembles small black granules, but has many small pores inside each grain to regulate the movement of gases.Air consists of the elements of nitrogen and oxygen which have slightly different properties when compressed in narrow spaces. The oxygen molecules are a little more active and they travel in a manner conducive to their capture in the very small pores of the CMS. The nitrogen molecules are a bit “slippery”, though, and might pass through more easily.The CMS bed is pressurised with compressed air, thereby driving oxygen and nitrogen into the bed too. If oxygen is not allowed to pass through the pores, it will remain within the structure. This is called adsorption when the molecules of the gas adhere to the surface of the material. The product gas contains nitrogen, which continues to flow through and to go out of the system.A good picture to have in mind is a “hallway” with many people in it and a small doorway. Oxygen is like people with the big bags in front of them that are stuck at the door; Nitrogen is more like people with the smaller bags in front of them and it fits in nicely.System does not rely on only one sieve bed. One bed is utilized to trap oxygen and the other is vented to decompress the trapped oxygen and remove it. It is the reset stage which is essential since it allows the sieve to function again. After that it alternates between the two beds.This is the continuous cycle that is essential to maintain steady N production. This could appear in a laser cutting facility where a clean nitrogen flow is required to prevent the metal from oxidizing in use. The CMS removes oxygen prior to the arrival of the oxygen to the equipment, which contributes to the maintenance of clean cutting edges.CMS is so effective not only for the content, but because it operates under pressure as well. It becomes a sort of a filter that resets itself continuously and produces nitrogen without any interruption.

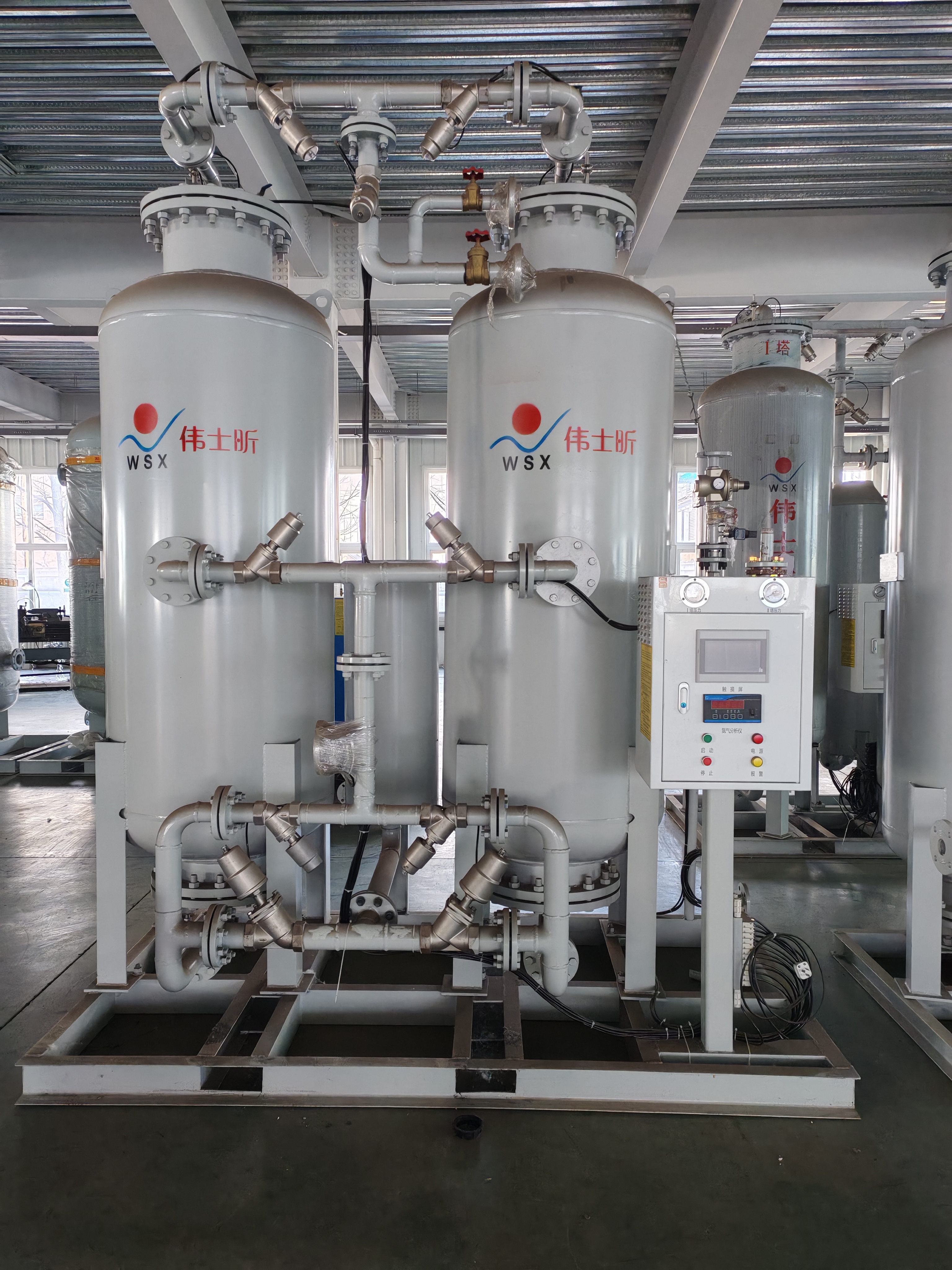

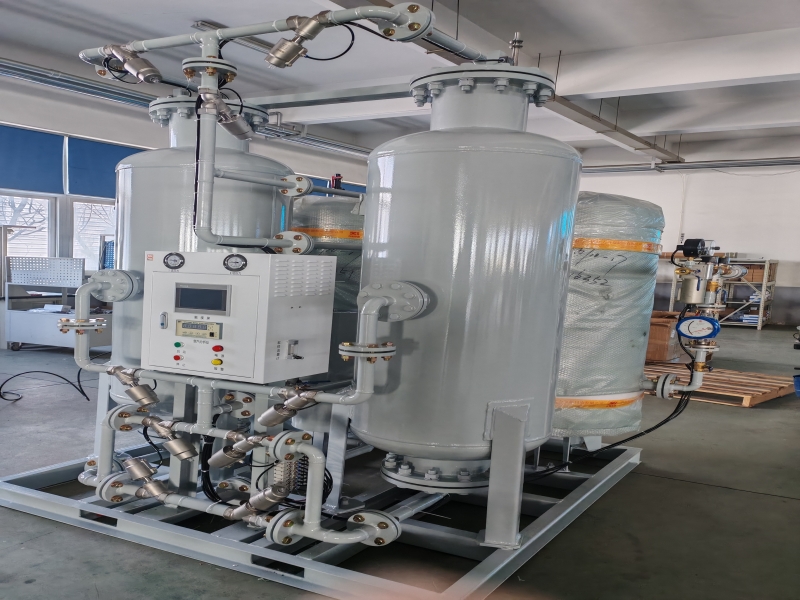

Complete Working Process of Dual-Tower Pressure Swing Adsorption

A pressure swing dual tower adsorption system is designed to maintain continuous flows of nitrogen. It has two towers containing the same amount of carbon molecular sieve, which are alternately used to perform the air separation process.The cycle starts when compressed air enters the first tower. When the pressure is high, inside the molecules of oxygen adhere to the material of the sieve. Nitrogen is not as readily trapped and it passes through the tower and exits as product gas. The roles then switch after a brief period of time. The first tower begins to release pressure and begins regeneration and the second tower starts producing nitrogen. This switching is controlled to occur with a controlled rhythm, typically in the order of seconds, and thus the output remains steady.This can be illustrated as two employees with a shift schedule. One is in production and the other is resting, getting ready for the next round. They alternate, so there is no stop in production.

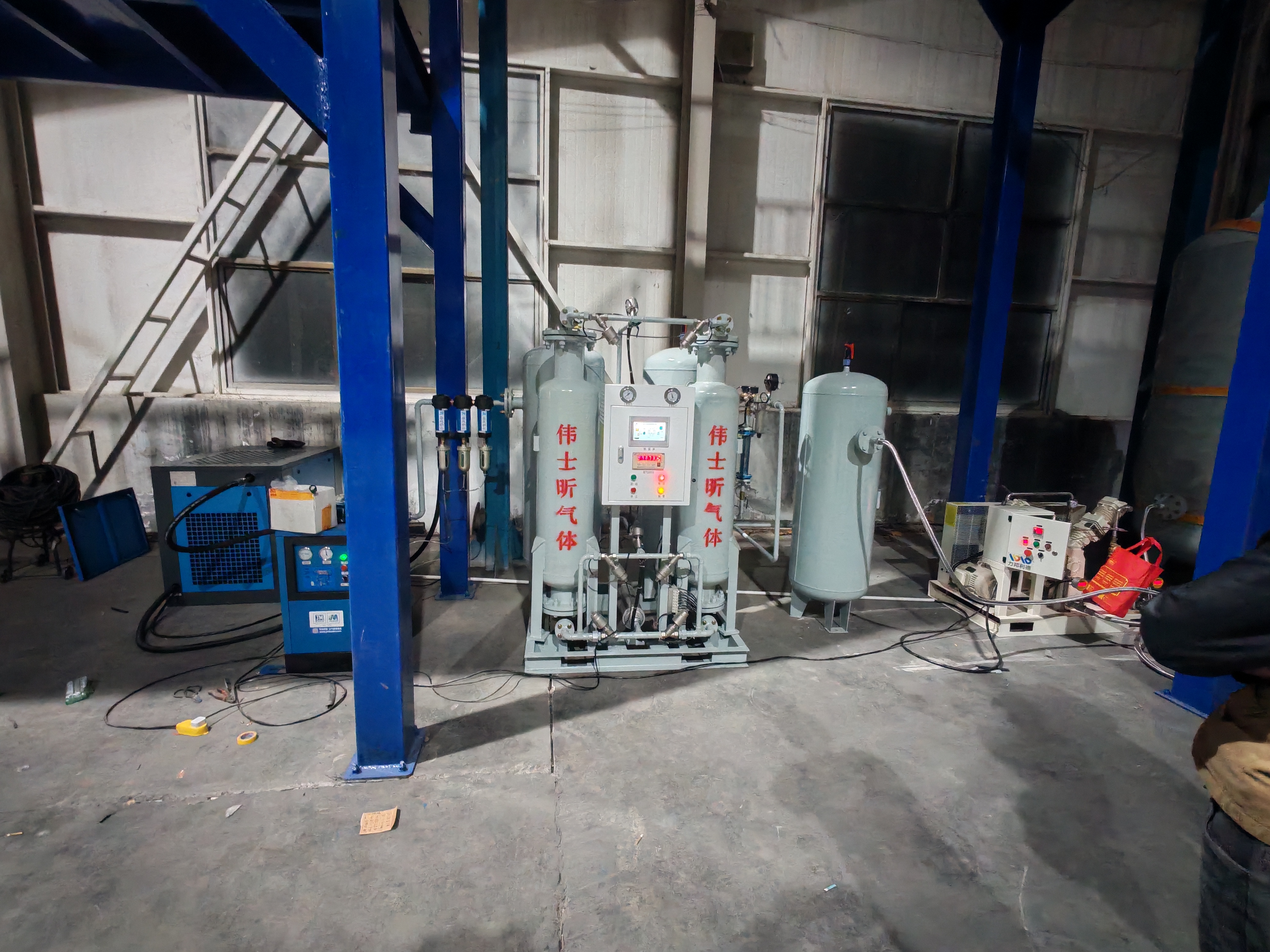

Introduction to Functions of Each Component in PSA System

A PSA nitrogen system is like a chain, with each link with its own specific task. The failure of one component to serve its function means that the entire process is less stable. Knowing these components allows you to easily appreciate the production of nitrogen when needed.Typically, it begins with a malfunction of the air compressor. This unit draws the normal air and compresses it to the appropriate pressure. If this step is not taken, the air would be too weak to be used in the separation process. The compressed air is still hot and could be water or dust.This is where the air treatment section comes in. Filters and dryers purify the air prior to its introduction into the main system. This process helps to preserve the carbon molecular sieve and maintain the performance's stability over time because of the removal of dust and water vapor.The next one is the Air Receiver tank. This is similar to a buffer. It eliminates any turbulence in the flow of air into the PSA unit, ensuring a steady stream of compressed air. This assists in maintaining pressure during operation.Next, the core part of the system is the dual adsorption towers loaded with carbon molecular sieves.The dual adsorption towers that contain carbon molecular sieves is then the heart of the system. These towers alternate in the separation of oxygen from nitrogen. One tower is producing Nitrogen and the other is being cleaned and reset. This switching ensures that production is uninterrupted.

Key Factors Affecting Nitrogen Purity and Flow Rate

The amount of nitrogen that is pure and the rate at which it flows out of a PSA system are not fixed. They will vary according to the setting and the use of a system. There are a few important aspects that play a big role in the pureness of the N2 gas and how much gas can be produced in a particular amount.One of the most important factors is air pressure. The PSA nitrogen generator equipment system must have the proper amount of pressure to ensure that the oxygen gas goes into the carbon molecular sieve. Insufficient pressure is not beneficial for oxygen separation and it also reduces the purity of the nitrogen. If it's too high, there's a possibility that the system will lose energy without producing a lot of output. The most common set up is to vary the pressure to get the correct balance.Another one is how fast the air will move. Excessively large amounts of gas are introduced at one time, which is not enough to allow the sieve to function correctly. This can cause the quality of the nitrogen to be reduced. But in conditions of low air flow, product shortages and inefficiencies can occur. Any purity and speed balance.
