The Ultimate Guide to Nitrogen Generators: How They Work and Why Your Business Needs One

In today’s competitive industrial landscape, efficiency, cost-saving, and reliability are not just advantages—they’re necessities. If your business uses nitrogen for manufacturing, packaging, or safety processes, you’ve likely faced the recurring expenses and logistical hassles of delivered nitrogen. What if there was a smarter, more sustainable solution? Enter nitrogen generators: the modern answer to on-demand nitrogen supply.

What is a Nitrogen Generator?

A nitrogen generator is a standalone system that extracts nitrogen gas directly from the surrounding air. By utilizing advanced filtration and separation technologies, these devices provide a continuous, high-purity nitrogen supply without the need for external deliveries. Think of it as having your own personal nitrogen plant on-site, available 24/7.

How Do Nitrogen Generators Work?

Nitrogen generators primarily operate using two proven technologies:

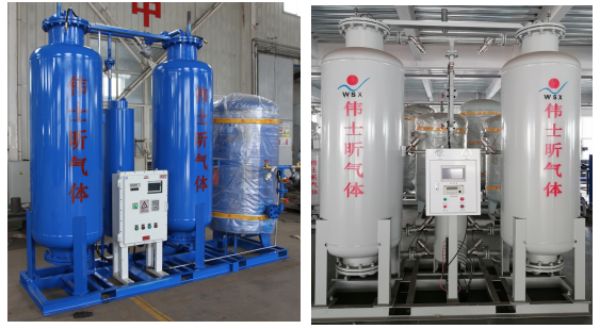

1. Pressure Swing Adsorption (PSA)

PSA technology uses carbon molecular sieve (CMS) to separate nitrogen from compressed air. Oxygen and other molecules are adsorbed by the sieve, allowing purified nitrogen to pass through. Twin towers alternate between adsorption and regeneration cycles, ensuring a non-stop flow.

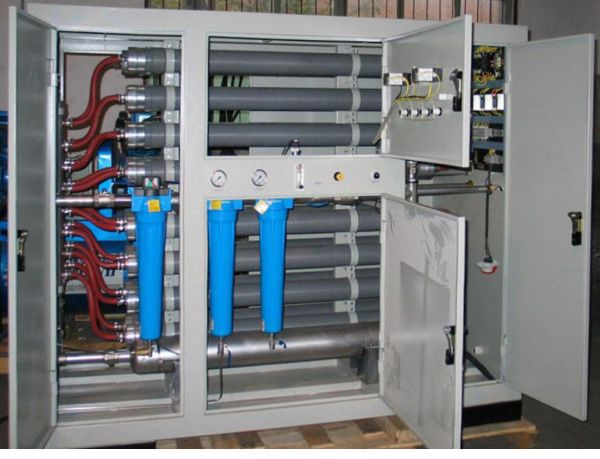

2. Membrane Separation

This method relies on hollow fiber membranes. When compressed air passes through, oxygen and water vapor permeate the membrane walls faster than nitrogen, resulting in a stream of dry, clean nitrogen at the outlet.

Both systems are automated, energy-efficient, and designed for minimal maintenance.

Top 5 Benefits of On-Site Nitrogen Generation

1. Significant Cost Reduction

Eliminate recurring costs associated with cylinder rentals, delivery charges, and bulk liquid nitrogen. With a nitrogen generator, over 90% of your nitrogen costs can be saved within the first 1-2 years.

2. Unmatched Convenience and Reliability

No more scheduling deliveries or worrying about inventory shortages. Your nitrogen supply is available exactly when you need it, at the consistency and pressure required for your processes.

3. Enhanced Safety

Reduce workplace hazards by minimizing the handling of high-pressure cylinders or cryogenic liquids. On-site generation also lowers transportation-related risks.

4. Environmental Sustainability

Cut down on carbon emissions from delivery trucks and energy-intensive liquefaction processes. Modern generators are designed for optimal energy efficiency.

5. Purity Control

Tailor nitrogen purity (from 95% to 99.999%) to your specific application, ensuring quality and reducing waste from over-purification.

Choosing the Right Nitrogen Generator

Consider these factors when selecting a system:

· Required Flow Rate (Nm³/h or SCFM)

· Purity Level Needs

· Available Space and Installation Environment

· Upfront Investment vs. Long-Term ROI

· Supplier Reputation and After-Sales Support

About Us: Weifang Weishi Xin Gas Equipment Co., Ltd is a leading manufacturer of industrial gas generation systems, serving global clients with cutting-edge, reliable, and efficient solutions for over 20 years. Our commitment to innovation and customer support ensures you get the perfect system for your unique requirements.
